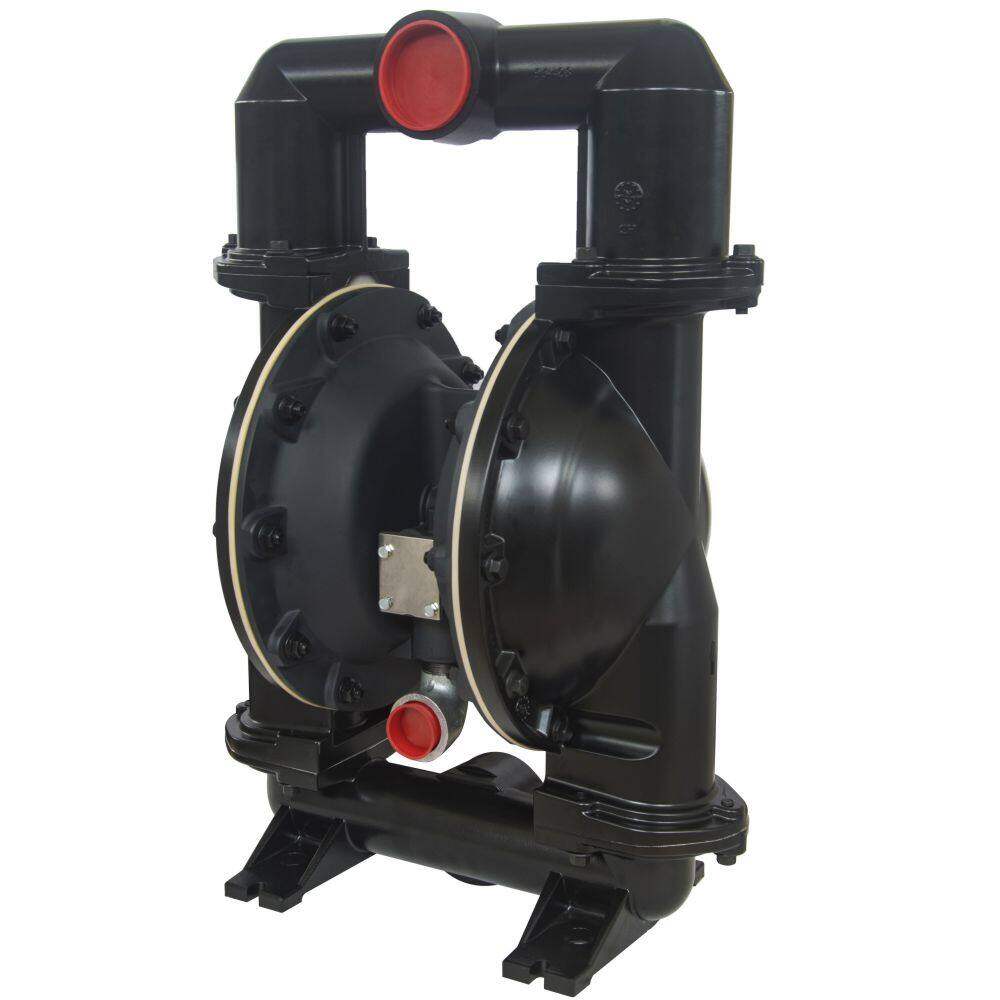

666320-EEB-C 3″ Metallic Diaphragm Pump Fit ARO PUMP
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
Pumpkits® offers parts that fit ARO products, but they are not genuine ARO parts.
| 666320-EEB-C Product Specific Data | |
|---|---|
| Center Body Material/Fluid Connection | Aluminum/BSP |
| Fluid Cap/Manifold Material/Hardware | Aluminum/Carbon steel |
| Seat Material | Santoprene |
| Ball Material | Santoprene |
| Diaphragm Material | Santoprene |
| Pump Type | Diaphragm Pump |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Flow Rate | 237 gpm (897.0 lpm) |
| Max Solid Size | 3/8″ (9.5 mm) |
| Max Temperature Limits (C) | -40° to 177° |
| Max Temperature Limits (F) | -40° to 350° |
| Noise Level @ 70 psig, 60 cpm | 86.3 db(A) |
| Size | 3″ (76.2 mm) |
