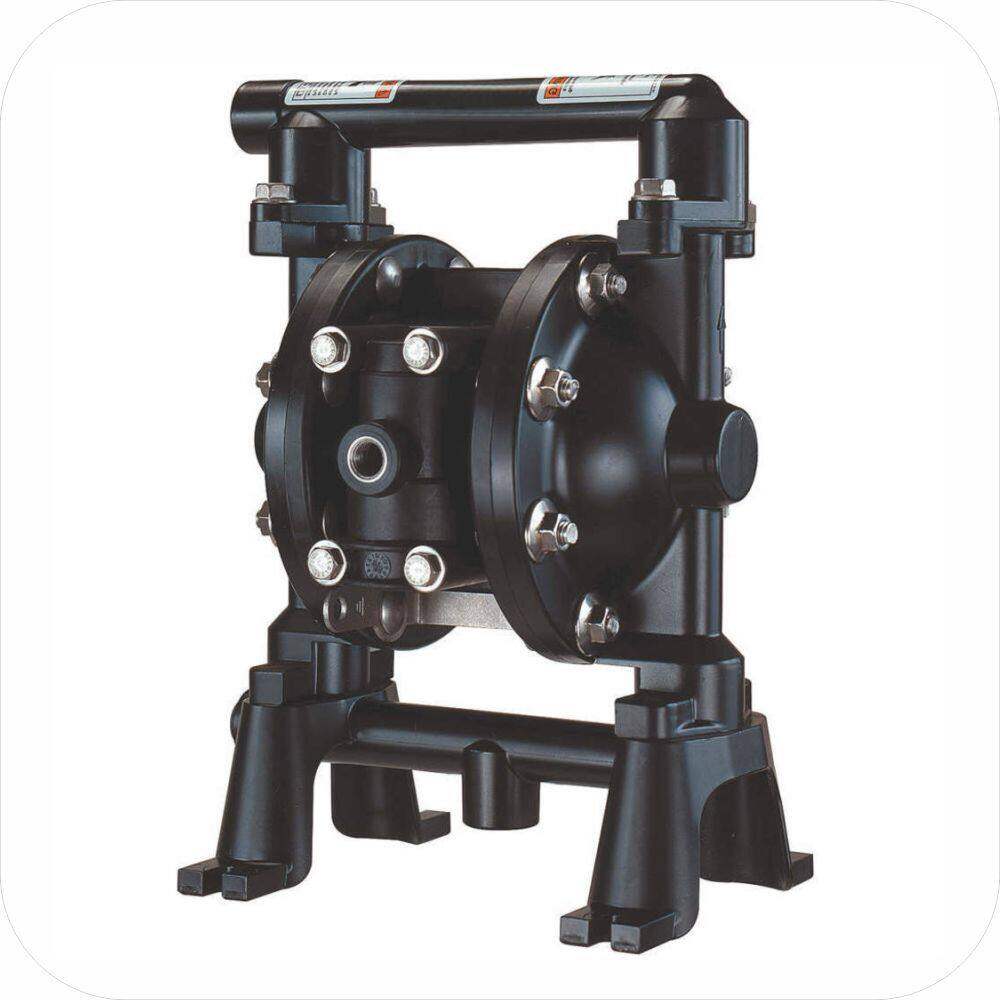

PD05R-AAS-STT-B AODD PUMP Aluminium PTFE 1/2 Inch Fit ARO Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
Pumpkits® offers parts that fit ARO products, but they are not genuine ARO parts.
Product Specifications:
| Item | Double Diaphragm Pump |
| Air Inlet Size | 1/4″ FNPT |
| Ball Material | PTFE |
| Body Material | Aluminum |
| Check Seat Material | Stainless Steel |
| Connection Style | NPT |
| Diaphragm Material | PTFE+SANTOPRENE |
| Height | 11.75″ |
| Inlet/Outlet Size | 1/2″ |
| Length | 8 7/32″ |
| Manifold Connection | Single |
| Max. Dia. Solids | 3/32″ |
| Max. Flow | 12 gpm |
| Max. Flow GPM | 12 |
| Max. Operating Pressure | 100 psi |
| Max. Temp. | 200 Degrees F |
| Operation Type | Air Operated |
| Self-Priming Dry | 10 ft. |
| Self-Priming Wet | 15 ft. |
| Valve Type | Ball |
| Width | 8 3/32″ |
