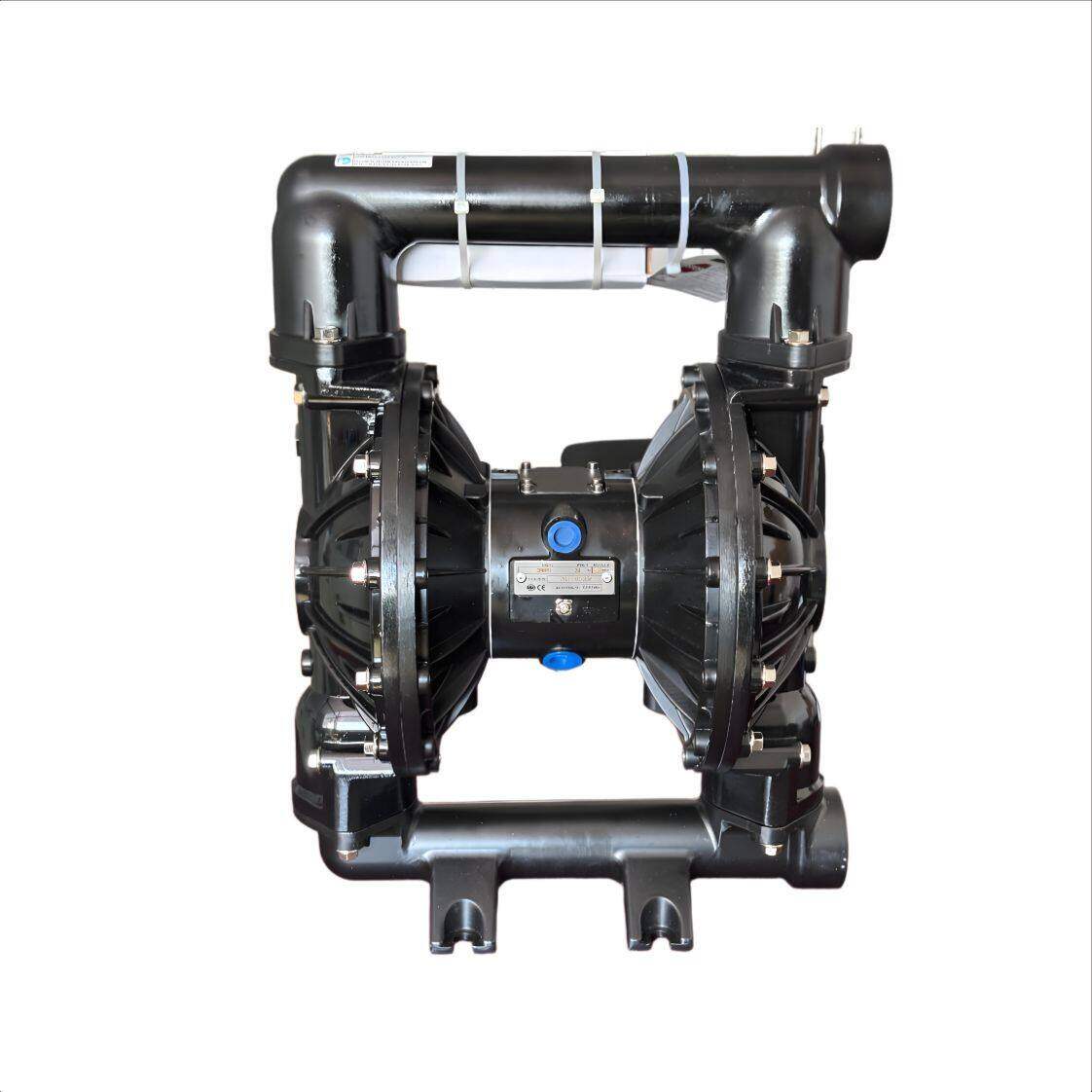

PDFC311 Aodd Pumps Aluminum Fit GRACO Husky 2150
Completely interchangeable with GRACO pump parts
GRACO® is a registered trademark of Graco Inc
Pumpkits® offers parts that fit Graco products, but they are not genuine Graco parts.
Repair Parts
| Part No. | Description |
|---|---|
| D0F300 | 2-inch 316 Stainless Steel Seat Kit |
| D0F010 | 2-inch PTFE Check Ball Kit |
| D0F001 | PTFE Diaphragm Kit for 2-inch Pump |
| 236273 | Air Valve Repair Kit |
| D0F311 | Complete Fluid Repair Kit |
| Air Inlet Size (in) | 1/2 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | PTFE |
| Centre Section Material | Aluminium |
| Compatible Material | Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water – Wastewater Transfer |
| Connection Type | Threaded |
| Diaphragm compatible material | PTFE |
| Diaphragm Material | PTFE/EPDM 2-Piece |
| Fluid Inlet Size (in) | 2 |
| Fluid Inlet Thread Type | BSPT |
| Fluid Outlet Size (in) | 2 |
| Fluid Outlet Thread Type | BSPT |
| Fluid Section Material | Aluminium |
| Manifold Configuration | End Port |
| Material | Aluminium |
| Maximum Air Consumption (SCFM) | 175 |
| Maximum Air Pressure (MPa) | 0.827 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Cycle Rate (CPM) | 145 |
| Maximum Flow Rate (GPM) | 150 |
| Maximum Fluid Pressure (MPa) | 0.827 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Operating Temperature (°F) | 200 |
| Maximum Solid Size (in) | 0.25 |
| Model | Husky |
| Power Source | Air |
| Seat Material | Stainless Steel |
| Series | 2150 |
